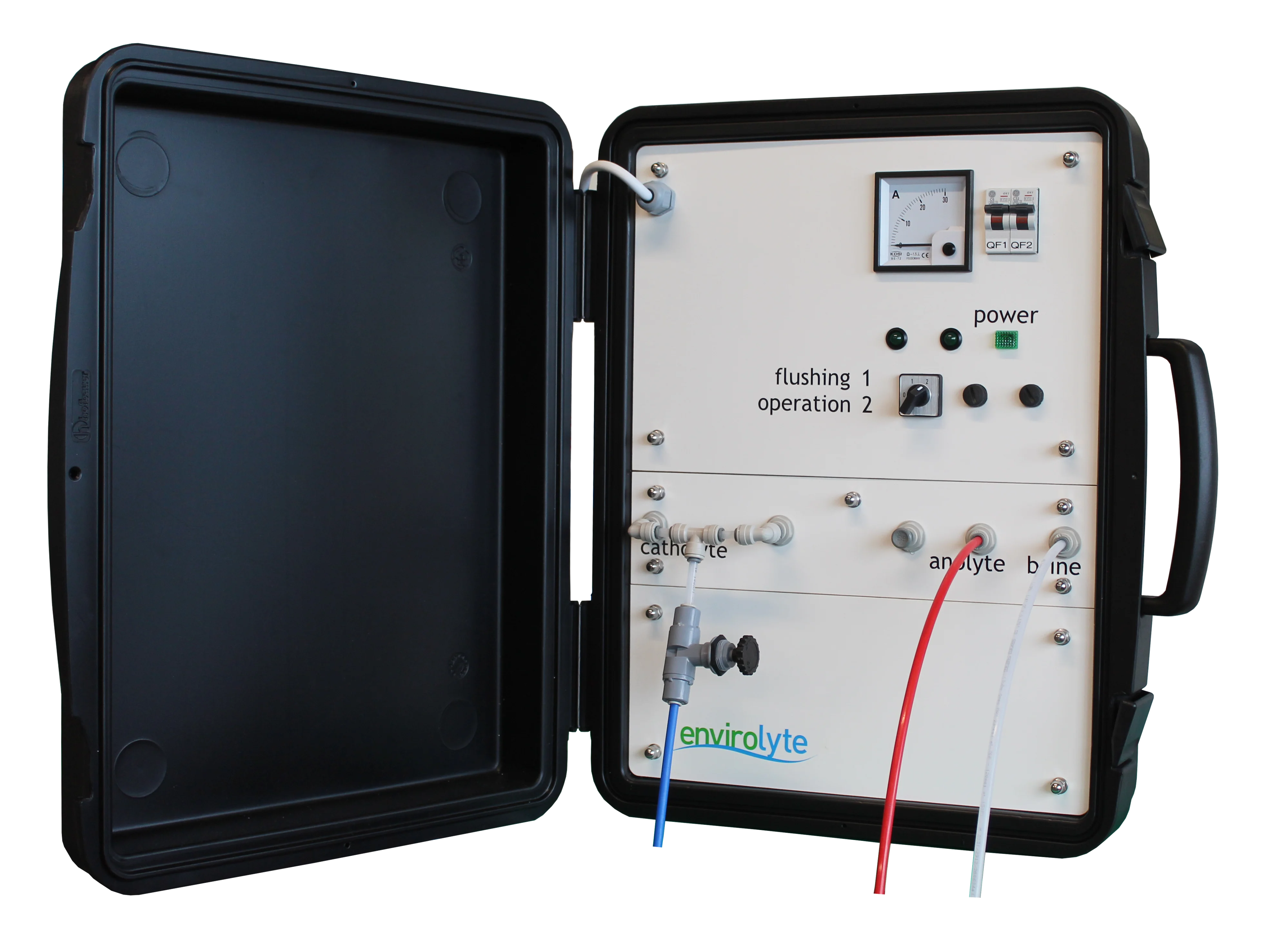

Envirolyte Demo-30 is a portable ECA demonstration unit designed to produce acidic anolyte and catholyte or neutral anolyte during customer presentations, technical demonstrations, training sessions, trade fairs and exhibitions. The compact system allows Envirolyte distributors and dealers to demonstrate electrochemical activation technology and generate activated solutions directly at the presentation site.
The portable demonstration unit requires only a 230 VAC or 110 VAC power supply and a small quantity of prepared brine solution to begin operation. Depending on the selected operating mode, Demo-30 can produce approximately 30 litres per hour of acidic anolyte together with approximately 10 litres per hour of catholyte, or approximately 40 litres per hour of neutral anolyte.
With a weight of 14 kg and a compact double-walled plastic transport case, Demo-30 is intended for convenient transportation and repeated field demonstrations. For larger on-site generation requirements, compare the unit with GH-40 anolyte/catholyte generators, ELA anolyte generators and ANW anolyte generators.
Portable Electrochemical Activation Demonstration Equipment
Demo-30 is primarily a presentation and training tool for demonstrating the principles of electrochemical activation technology. The system allows distributors, dealers and technical specialists to produce activated solutions directly in front of customers and demonstrate the basic operating principles of Envirolyte equipment.
The unit can be transported to customer offices, industrial premises, trade fairs, exhibitions and other locations where access to a full-size Envirolyte installation is not practical. Its compact enclosure combines the generation equipment in a protective case intended to withstand normal handling during transportation and field use.
| Use case | Purpose |
|---|---|
| Customer presentations | Demonstrate on-site production of acidic anolyte, neutral anolyte and catholyte directly at the customer's premises. |
| Distributor and dealer demonstrations | Provide a portable technical tool for presenting Envirolyte electrochemical activation technology. |
| Trade fairs and exhibitions | Operate a compact ECA generation system where installation of full-size industrial equipment is not practical. |
| Technical training | Demonstrate basic operating principles, generated solution streams and equipment configuration. |
| Pre-project evaluation | Support preliminary demonstrations and discussions before selecting larger Envirolyte generation equipment. |
Generated Solutions
The Envirolyte Demo-30 can operate in two production configurations. The first configuration produces acidic anolyte and catholyte simultaneously. The second configuration produces neutral anolyte.
| Operating mode | Generated solution | Approximate output |
|---|---|---|
| Acidic anolyte and catholyte production | Acidic anolyte | Approximately 30 L/h |
| Acidic anolyte and catholyte production | Catholyte | Approximately 10 L/h |
| Neutral anolyte production | Neutral anolyte | Approximately 40 L/h |
Simple Setup for Field Demonstrations
The portable unit is designed for straightforward preparation and operation. A mains power connection and prepared brine solution are required before starting the demonstration.
| Requirement | Description |
|---|---|
| Electrical supply | 230 VAC or 110 VAC, depending on unit configuration. |
| Feed solution | A small quantity of prepared brine solution. |
| Installation location | A suitable presentation or demonstration area with access to the required electrical supply. |
| Solution collection | Suitable containers for collecting the generated acidic anolyte, neutral anolyte or catholyte streams. |
| Operation | The unit should be operated according to Envirolyte instructions and applicable electrical, chemical handling and workplace safety procedures. |
Technical Specifications of Demo-30
| Specification | Demo-30 |
|---|---|
| Product code | Demo-30 |
| Equipment type | Portable ECA demonstration unit |
| Enclosure | Double-walled plastic case |
| Dimensions | 469 × 344 × 155 mm |
| Weight | 14 kg |
| Power supply | 230/110 VAC ±10% |
| Acidic anolyte output | Approximately 30 L/h |
| Catholyte output | Approximately 10 L/h |
| Neutral anolyte output | Approximately 40 L/h |
| Feed solution | Prepared brine solution |
| Primary purpose | Customer presentations, technical demonstrations, training, trade fairs and exhibitions |

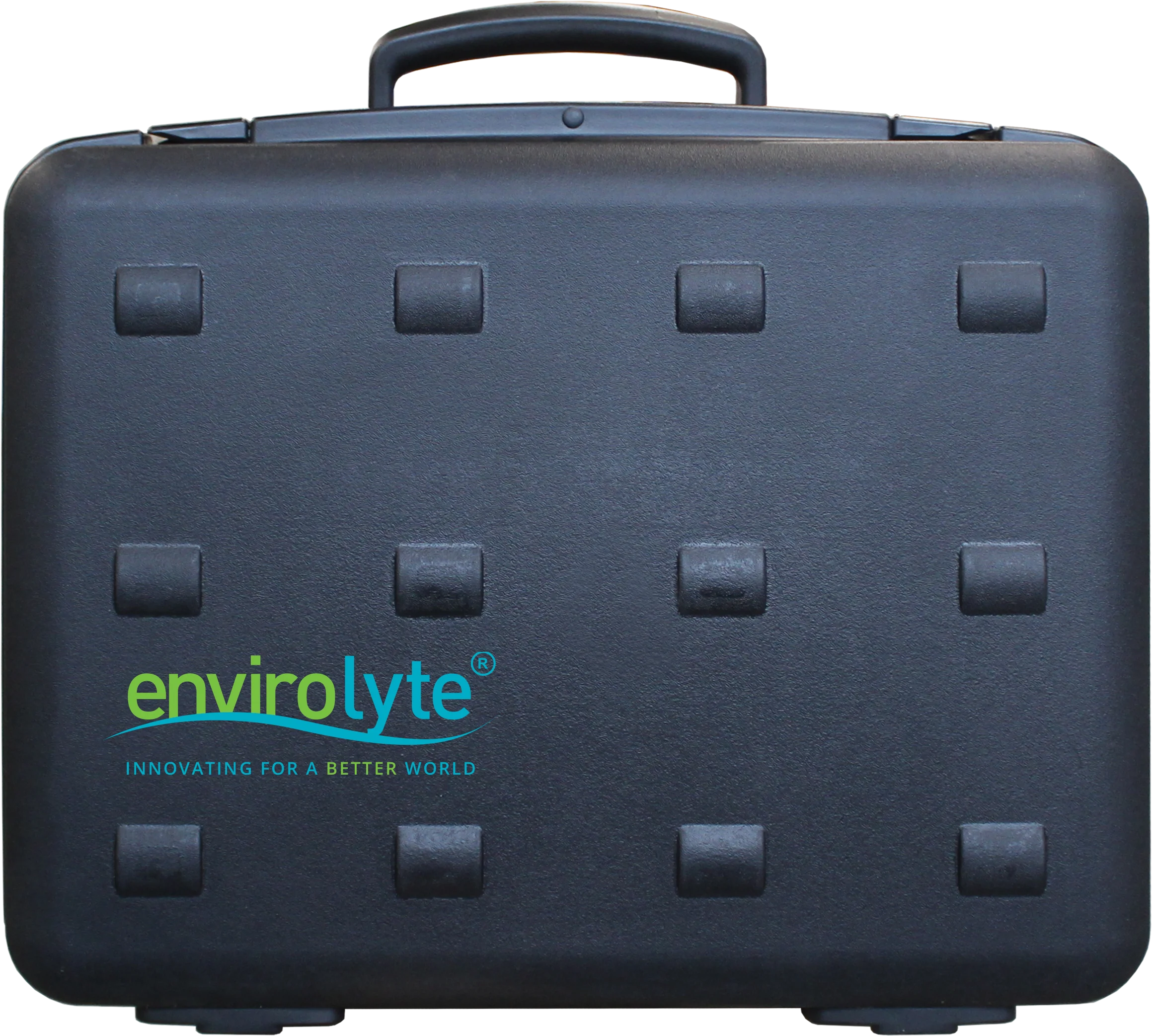

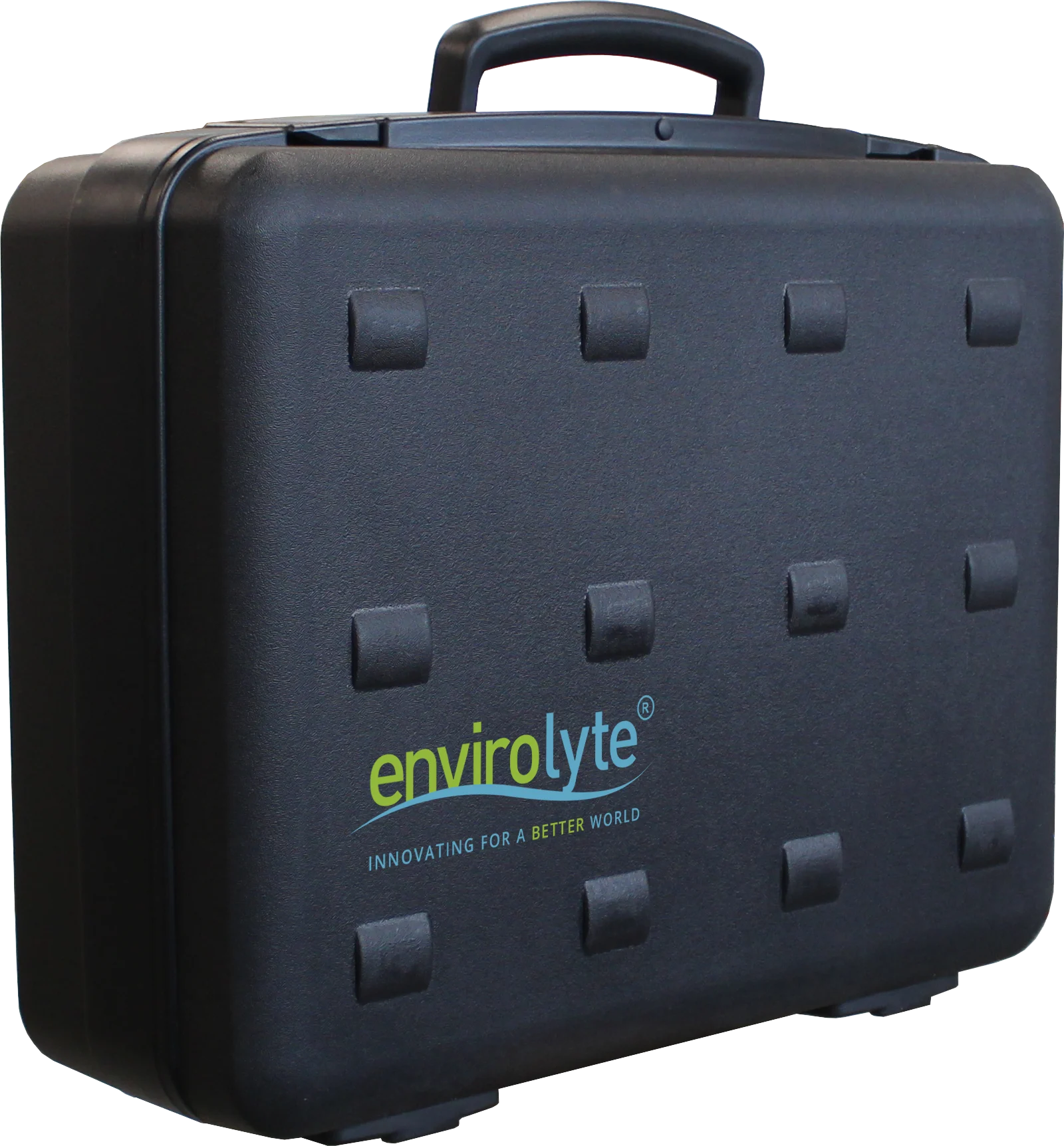

Portable Transport Case
The Demo-30 generation equipment is housed in a double-walled plastic case designed to provide a strong, lightweight and stable enclosure. The transport format simplifies handling during business travel and helps protect the equipment against normal bumps and impacts associated with transportation and repeated field demonstrations.
The compact dimensions and 14 kg equipment weight make Demo-30 considerably easier to transport than standard industrial generation systems. The unit should nevertheless be transported, stored and operated according to Envirolyte instructions to protect the electrochemical components, electrical equipment and fluid connections.
Demo-30 Compared with Other Envirolyte Generators
Demo-30 is intended primarily for demonstrations, presentations and technical training. It should not be positioned as a replacement for industrial Envirolyte generators designed for continuous treatment, automated dosing or larger production requirements.
| Project requirement | Recommended Envirolyte option |
|---|---|
| Portable ECA technology demonstrations, customer presentations and training | Demo-30 Demonstration Unit. |
| Compact on-site production of neutral anolyte and catholyte from prepared brine | GH-40 anolyte/catholyte generator. |
| Industrial production of anolyte with optional useful catholyte stream | ELA anolyte generators. |
| Low-salt neutral anolyte production without a commercially useful catholyte stream | ANW anolyte generators. |
| Dedicated alkaline catholyte production | CG catholyte generators. |
Technology and Technical Resources
Demo-30 provides a practical way to demonstrate the basic principles of electrochemical activation and the production of electrolyzed water solutions. For additional technical information, see the Envirolyte resources covering electrochemical activation technology, diaphragmatic cells, electrolyzed water solutions, microbiological testing and technical downloads.
Frequently Asked Questions
Demo-30 is a portable ECA demonstration unit designed for Envirolyte distributors, dealers and technical specialists to demonstrate electrochemical activation technology and produce activated anolyte and catholyte solutions during customer presentations, training sessions, trade fairs and exhibitions.
The unit can produce approximately 30 litres per hour of acidic anolyte together with approximately 10 litres per hour of catholyte, or approximately 40 litres per hour of neutral anolyte.
The portable unit requires a compatible 230 VAC or 110 VAC mains power supply and a small quantity of prepared brine solution.
The current technical specification states an equipment weight of 14 kg.
Demo-30 is primarily designed for demonstrations, presentations and technical training. Continuous industrial treatment projects should be evaluated using Envirolyte equipment selected according to required output, generated solution parameters, automation, dosing and installation requirements.
Request Demo-30 Information
For operating instructions, distributor demonstrations, technical presentations or selection of suitable Envirolyte equipment, send your enquiry to Envirolyte Industries International Ltd. Envirolyte can provide information about Demo-30 configuration, power supply requirements, prepared brine, generated solution output, transportation and suitable demonstration procedures.
